Heated seat wiring - earth?

[MJA 14]

Hi,

I'm plugging in the loom for the heated seats but can't work out where the earth wire on the loom is supposed to attach. My car didn't have heated seats from factory and the earth seems like it should attach somewhere under the drivers seat area on layout of the loom.

I haven't got as far as my fuse box yet but am hoping it will be case of connect wires with connectors with the same colour.

Cheers

Matt

[Philly-R6 0]

I wrote some notes here:



The harness is grounded to the stud by the relay assembly (Brown wire with ring connector) - near where your knees would be sat in the rear-left seat.

See Cressa's pic here:



Power comes in via the Black wire (Green plug) which plugs into the grey strip/block ( TV5 ) above the fusebox.

Illumination for the switch is supplied through the Grey/Blue wire (Grey plug) which plugs into the grey strip/block ( TV8 ) above the fusebox.

Match the colours with what's there already...



Have fun!

[MJA 14]

Cheers Philly, will hopefully get stuck into this at the weekend. Fusebox bit sounds ok with matching colours and connectors 🙂

My earth cable confuses me a bit though as it has exited the wrapped loom under the drivers seat area (RHD car, relays are mounted passenger rear). The wrap looks factory. I can see the stud behind the rear passenger door card though that you mention though but was wondering if there is factory stud on the transmission tunnel or something I could use although I can see it and most of my inteior is stripped out.

[Philly-R6 0]

I don't remember any studs around the transmission tunnel.

I would guess the handbrake fixing would be the only stud substantial enough for an earth. There are a few studs for mounting the plastic trims on the tunnel? And one for a plastic clamp for retaining the various harnesses.

I have only seen the two standard harnesses:

1. small harness: White plug for the switch, Black 6-way plug to connect to the large harness, two single plugs to the blocks on top of the fusebox.

2. large harness: Black 6-way socket from the small harness, two plugs to the seats, large block housing the two controllers and the earth.



[MJA 14]

I have both of those i think, definitely the bottom one as have laid that one out. I can see the earth cable is at the relay end where as mine is with the drivers side seat. My cable wrapping is also completely wrapped so maybe the earth was moved at some point. Good to see where it's meant to be but annoyingly will mean i have to take my seats out again to unwrap and achieve that!



[Philly-R6 0]

Ha - hope you sort it.

[Philly-R6 0]

I stumbled across a photo of the fusebox - dropped toward the floor.

1 hour ago, Philly-R6 said:

Power comes in via the Black wire (Green plug) which plugs into the grey strip/block ( TV5 ) above the fusebox.

Illumination for the switch is supplied through the Grey/Blue wire (Grey plug) which plugs into the grey strip/block ( TV8 ) above the fusebox.

Power ( TV5 ) is to the left of the pic and Illumination ( TV8 ) to the right.

[Keyo 26]

Im not sure but there is a round earthing circle in front of the drivers seat to the right of the fuse box by the A pillar it is where you earth electric seats from recaro . I cant remember where it goes but I removed that Loom that Matt has . 😬

Easypops is pretty good on seat looms.

[Keyo 26]

Here is a picture of your Loom .

[easypops 4]

There is a wee yellow arrow top right that shows the earth block that’s hidden behind the dash 👍

[Keyo 26]

I think your loom might be a later style loom if there is such a thing as the wrapping looks different,

[easypops 4]

Another picture of the fusebox, the 2 red arrows are the green block and the grey/blue one as mentioned better above and the other picture is the relay end and you’ll see the other earth there as well

[MJA 14]

Cheers. This gives me some stuff to work off. Im not sure my earth will stretch as far as behind the dash. Ill get some pics if I can't work it out!

Sent from my SM-G960F using Tapatalk

[easypops 4]

2 minutes ago, MJA said:

Cheers. This gives me some stuff to work off. Im not sure my earth will stretch as far as behind the dash. Ill get some pics if I can't work it out!

Sent from my SM-G960F using Tapatalk


If the green plug and the grey one reach the earth is really close to the actual fusebox 👍

[MJA 14]

Rain stops play today :(



Sent from my SM-G960F using Tapatalk

[MJA 14]

Right back to this as I have just taken all of my interior back out in preparation for some work needed underneath the car (bloody car is draining me dry now).

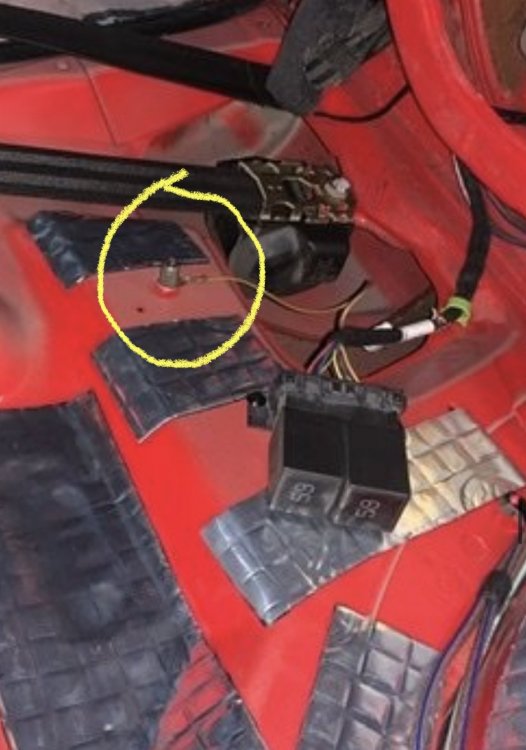

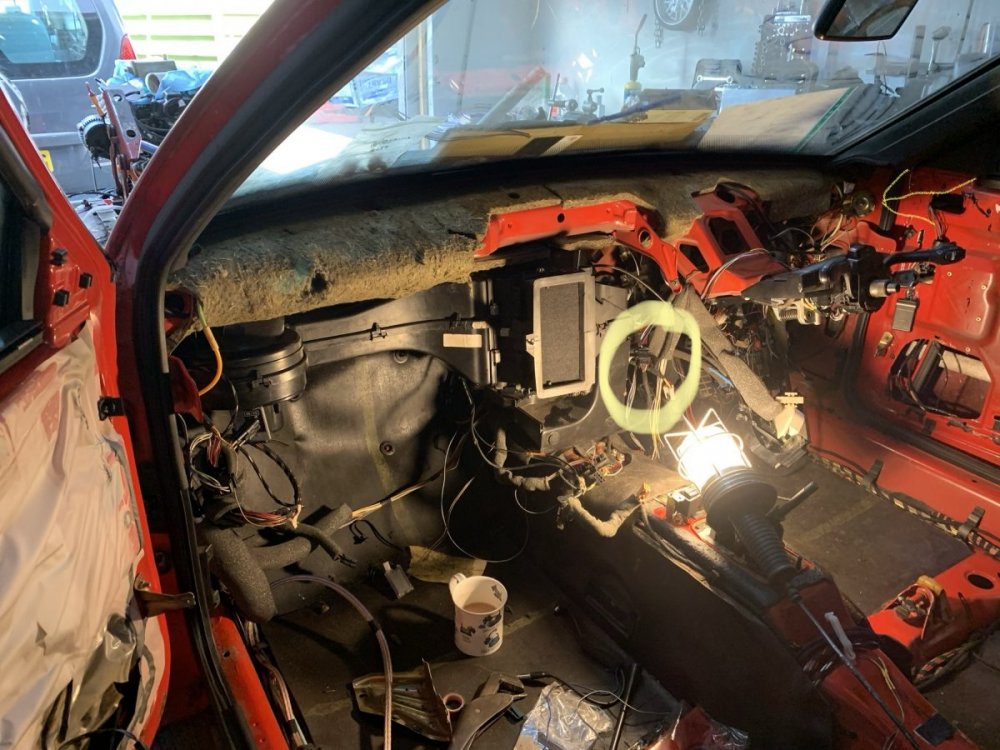

Q - can i use the stud circiled in the picture, once paint ground off with a suitable nut as an earth, without causing myself any rust issues in the future? Is it too close to other wires too?

The earth cable won't stretch any further than this. My other option is to put a hole in the cross support metal work on the floor under the chair.



[1xshaunx1 8]

52 minutes ago, MJA said:

Right back to this as I have just taken all of my interior back out in preparation for some work needed underneath the car (bloody car is draining me dry now).

Q - can i use the stud circiled in the picture, once paint ground off with a suitable nut as an earth, without causing myself any rust issues in the future? Is it too close to other wires too?

The earth cable won't stretch any further than this. My other option is to put a hole in the cross support metal work on the floor under the chair.



Is the earth from the relay ?

[MJA 14]

Yeah it's from the relay but wrapped in tape wrap to ths point. I can see there's an earth point right next to the relay. I suppose one option actually now the interior is all out again is to unwrap the tape and cut the wire down.

[easypops 4]

Why not attach it to where it’s meant(usually) to go? Or is it short?

[MJA 14]

Yea that's going to be the plan. Its too long at the mo but can cut that down. Just have to unwrap the wiring. That's the best course of action.
