Airbox wont fit?

[A5 VRX 0]

Alright people, picked up a standard airbox for the VR6 last weekend, i've tried to fit it but the top will not line up with the bottom (fits together fine off the car) looks like the MAF is too big or the plastic elbow that fits onto the back of that, could this be possible? Top of the airbox is about an inch out forwards from the bottom?



Any help would be much appriciated



thanks



Adam

[KADVR6 0]

your doing something wrong mate, the airbox sits in 3 mounting points and it all just fits together easily. are you sure the airbox is from a corrado and not a golf vr6 as they do differ.



get a pic or two up, if you get stuck i can pop over one evening.

[A5 VRX 0]

Yeah its sitting bang on, going to have another look now, defo from a VR Corrado. Was wondering if the maf or plastic elbow was from a Golf. I'll get some pics up too



AJ

[KADVR6 0]

Yeah its sitting bang on, going to have another look now, defo from a VR Corrado. Was wondering if the maf or plastic elbow was from a Golf. I'll get some pics up too



AJ





its def not the MAF as its a 6 pin MAF, and i'm sure all the golf vr's had the 4 pin MAF.

[A5 VRX 0]

I would upload the photos i just took but this forum is the only one i cant do it on, just says there too wideeven after resizing on Photobucket. Tried again but the 'box just wont fit at all!

AJ

[Jon_vr6 1]

photobucket account up load there and copy links over

[A5 VRX 0]

http://i53.photobucket.com/albums/g74/blackvalver/S4020351.jpg

http://i53.photobucket.com/albums/g74/blackvalver/S4020348.jpg

http://i53.photobucket.com/albums/g74/blackvalver/S4020350.jpg

http://i53.photobucket.com/albums/g74/blackvalver/S4020349.jpg

[KADVR6 0]

on the third picture down it looks like you have some non standard black rubber piping inserted into the elbow?? making the MAF pointing to far forward??

[A5 VRX 0]

Yeah thats the first thing i checked, but when i checked theres no join, as though its all one

[tandino 0]

That looks like an early MAF with the later plastic versus rubber MAF air pipe

[A5 VRX 0]

That looks like an early MAF with the later plastic versus rubber MAF air pipe



Seem to be getting somewhere now! What do i need then (or not) to fit this airbox?



Cheers bud



AJ

[tandino 0]

That looks like an early MAF with the later plastic versus rubber MAF air pipe



Seem to be getting somewhere now! What do i need then (or not) to fit this airbox?



Cheers bud



AJ



You need the earlier rubber concertinered hose from MAF to throttle body rather than the later 6 pin OBD1 plastic hose you have now...

[A5 VRX 0]

Cheers, thanks for the info. Thought there might be a difference between the hoses in the first place!



Ta mate



Adam

[quicky1980 0]

Cheers, thanks for the info. Thought there might be a difference between the hoses in the first place!



Ta mate



Adam

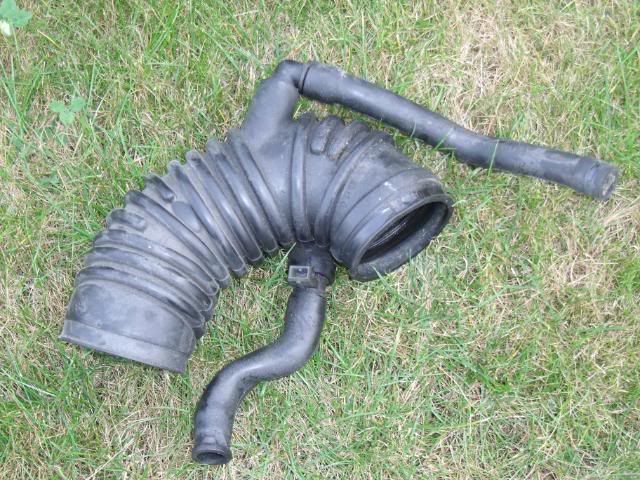

I have two of the items you need , £20 inc delivery (£25 including the short pipes attached)

[A5 VRX 0]

All sorted now, it was that part i needed above, someone kindly gave me a spare



Cheers anyway



AJ
