Well I got the gauges in yesterday well pleased I am. They look factory. Bit of a job to fit em. Pleanty of use for the old Dremmel tool. Pleanty of shots of how to. Now to find a VDO boost gauge. My current TIM is to different and won't fit the Audi front panel :roll:



So I went from this





To this in an afternoon.

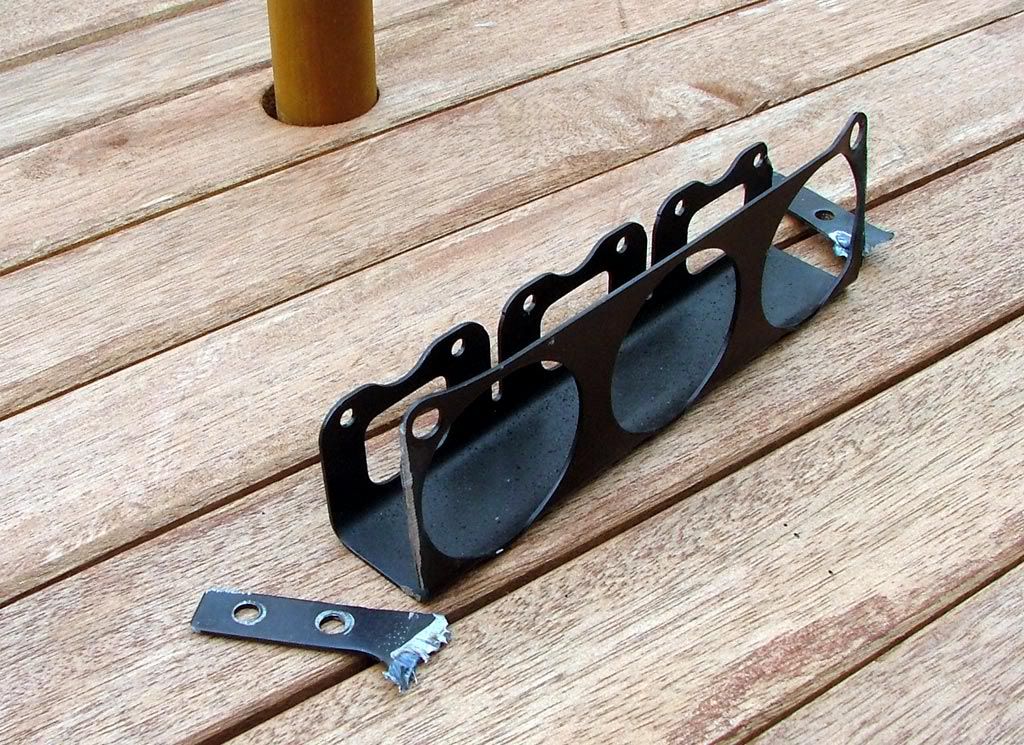

1st dismantle your Audi gauges and release the metal frame. Cut the side arms off I used a grinder.

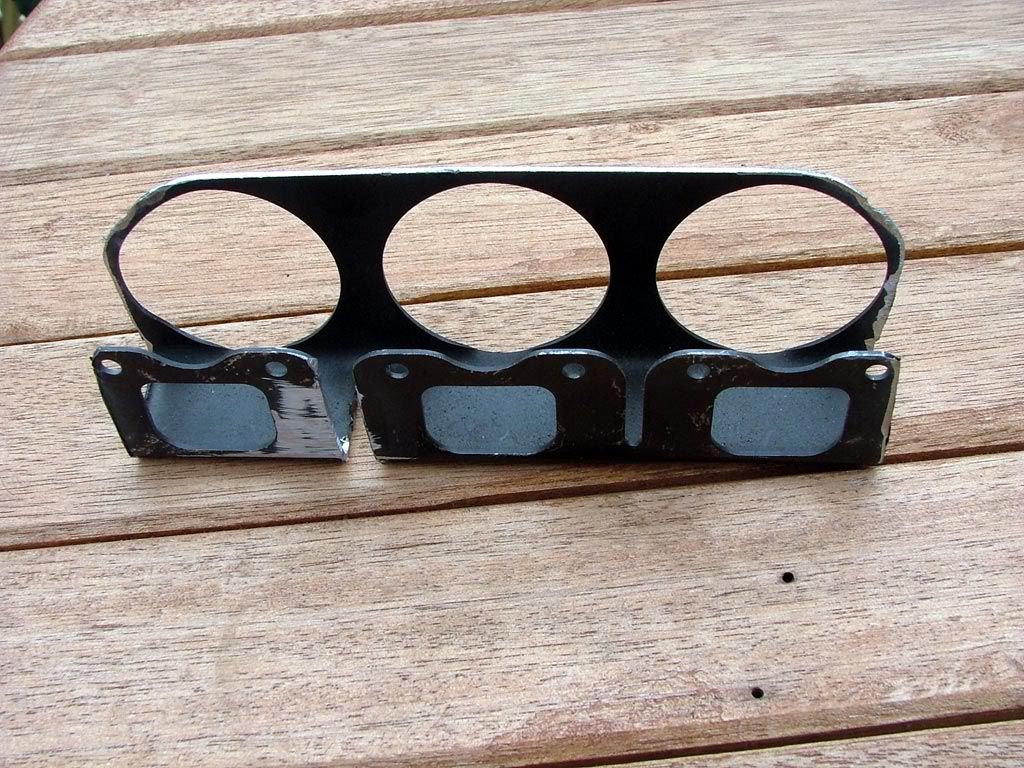

Start removing all teh excess metal from the frame. You will also need to do alot of plastic removal from the ashtray area. I took my centre console out and just cut teh lot away.

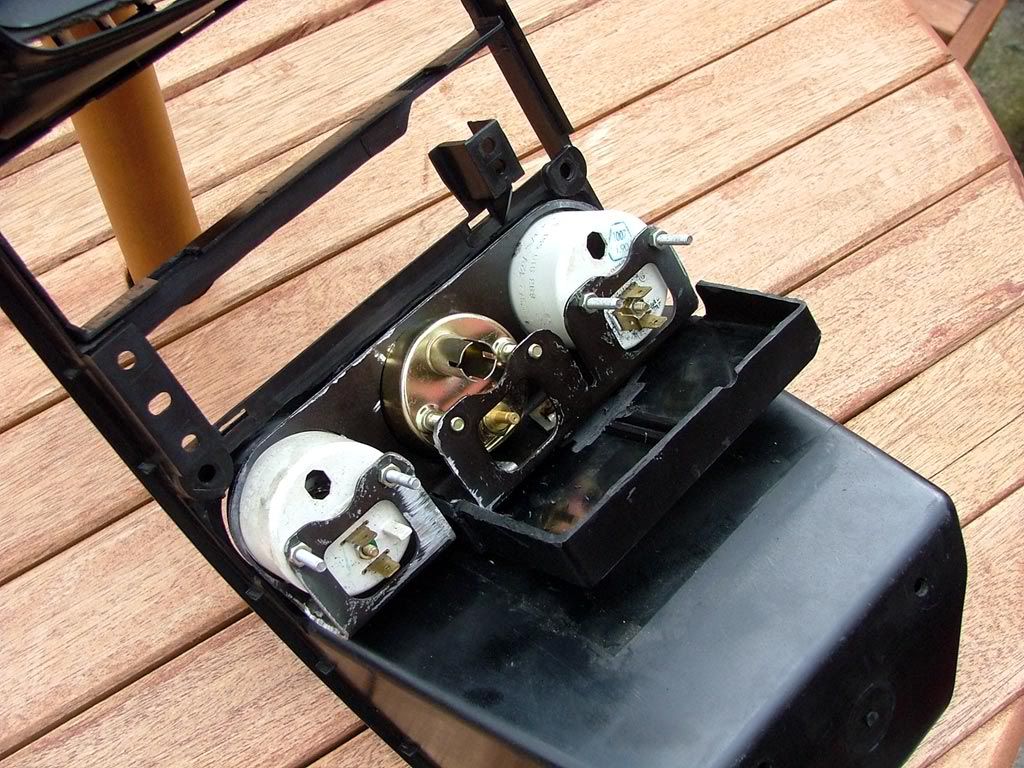

As you can see all that remains of the ashtray is the bottom panel and abit of the sides. Just to give it a bit of strength. I marked the base of teh metal frame and drilled through it then used thos holes as a guide to drill through the plastic base through to the cubby hole. The lower lip of the Audi panel hides the screw heads.

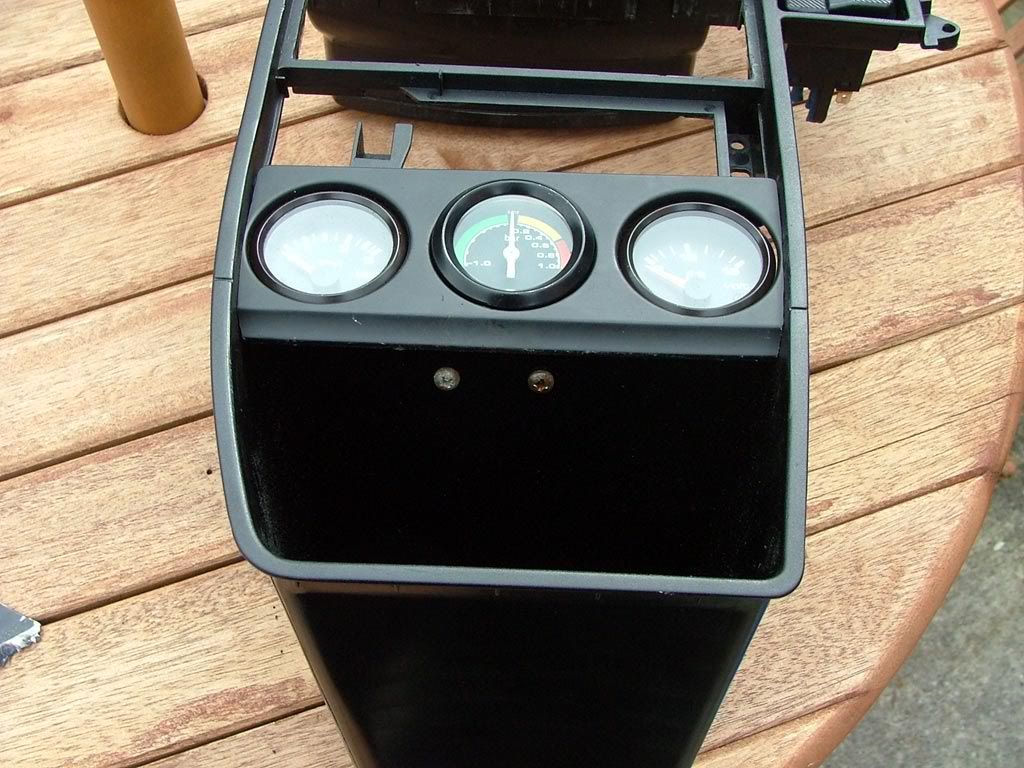

The screws can just be seen under the ledge.

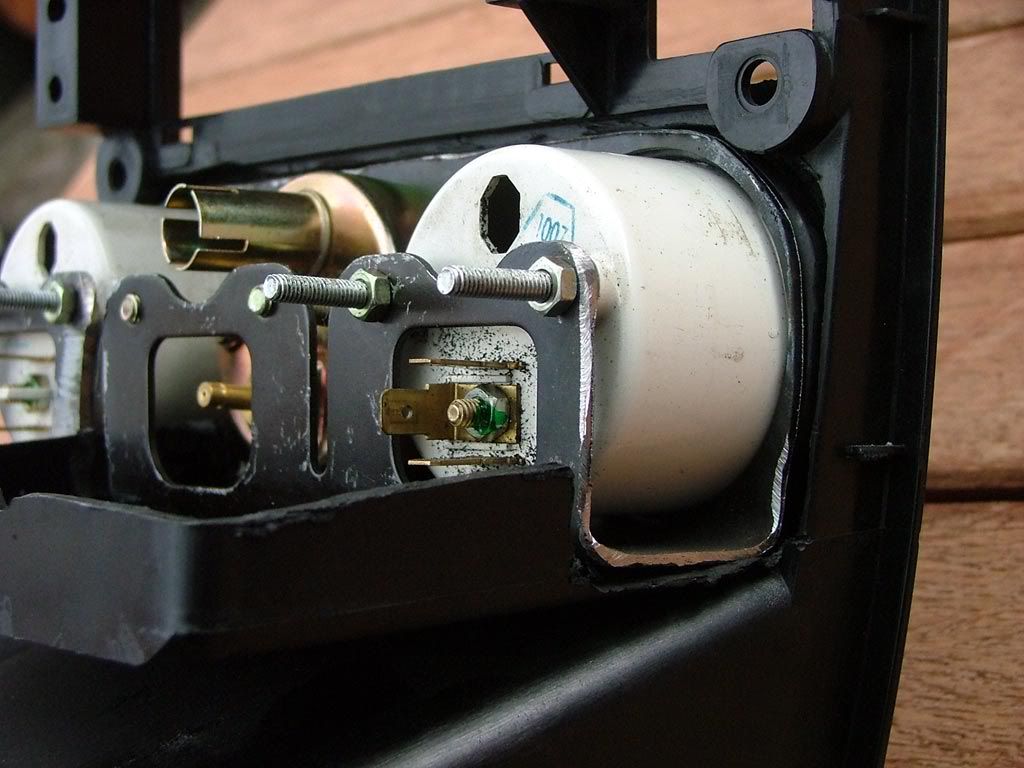

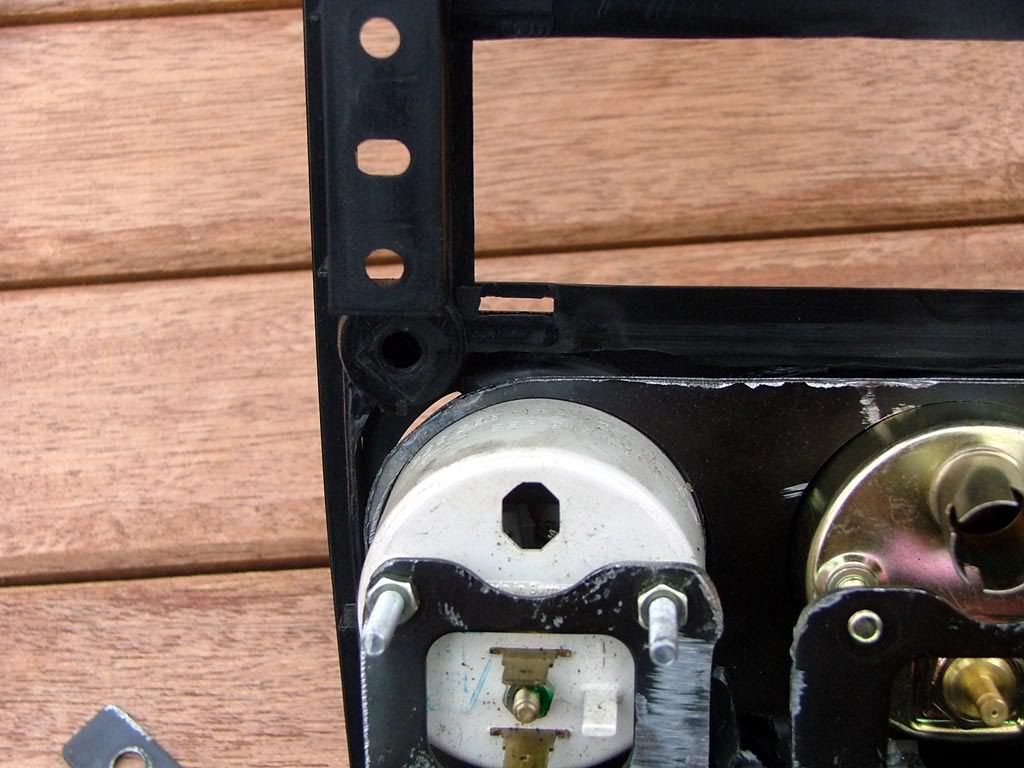

Couple of closeup shots of teh frame and ashtray area.

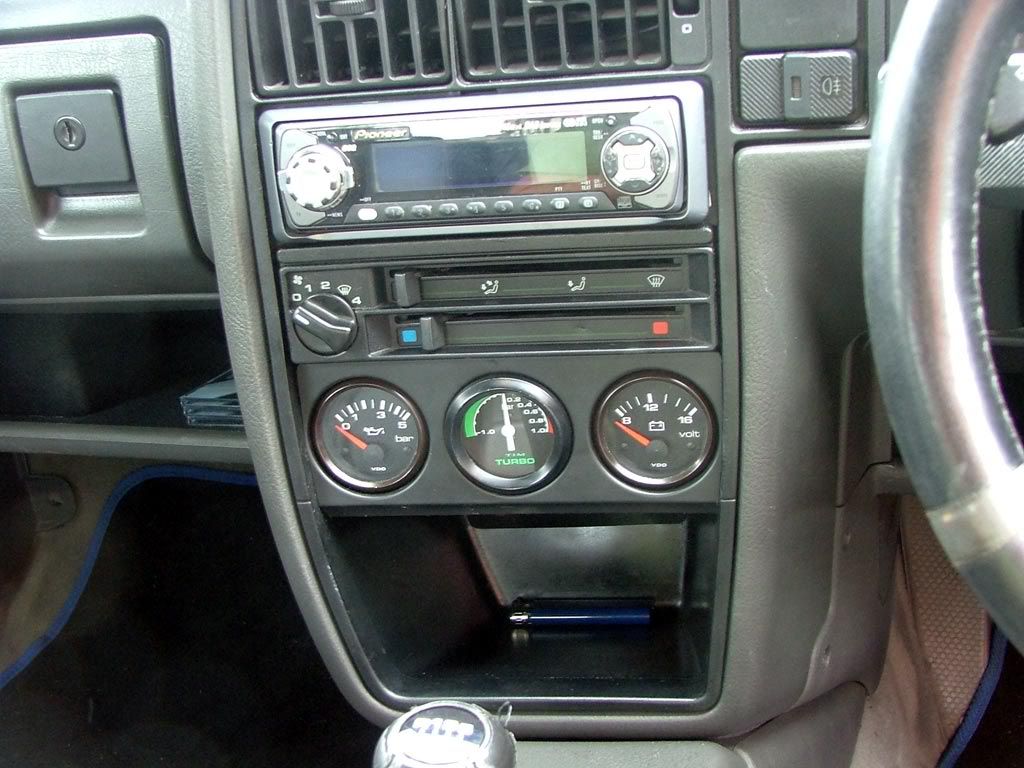

The finished item....



Others may have fitted their gauges dif so don't take this as gospel. If I had another centre console I would refine the work but you live n learn and I'm happy enough. :D
