Corrardo VR6 Fuel Pump

[Skag 0]

Please help me, I'm ready to give up on her

Trying to get a Fuel pump for my 1993 Corrado Vr6

Waited 5 months from Vw Heritage Parts and its a different part!

Looking to get just the silver pump element to fit in the original VW housing as the level sensor works well with no issues

Appreciate Vr6 needs to be a 4 bar pump, does anyone know what I'm talking about and can you help?

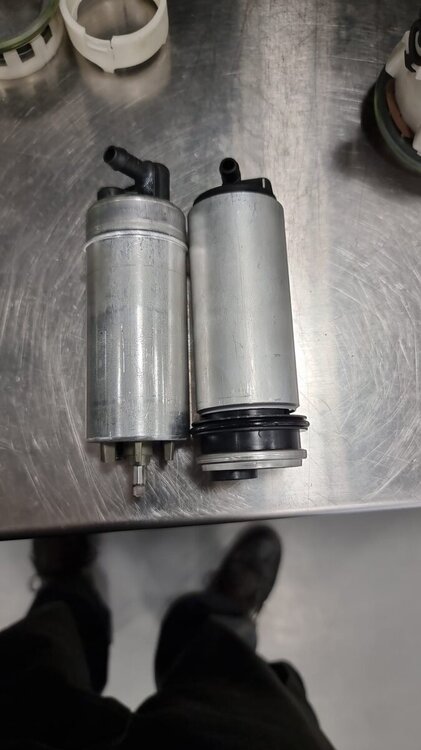

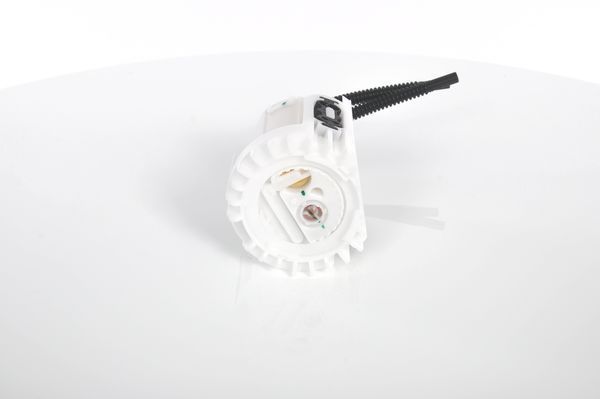

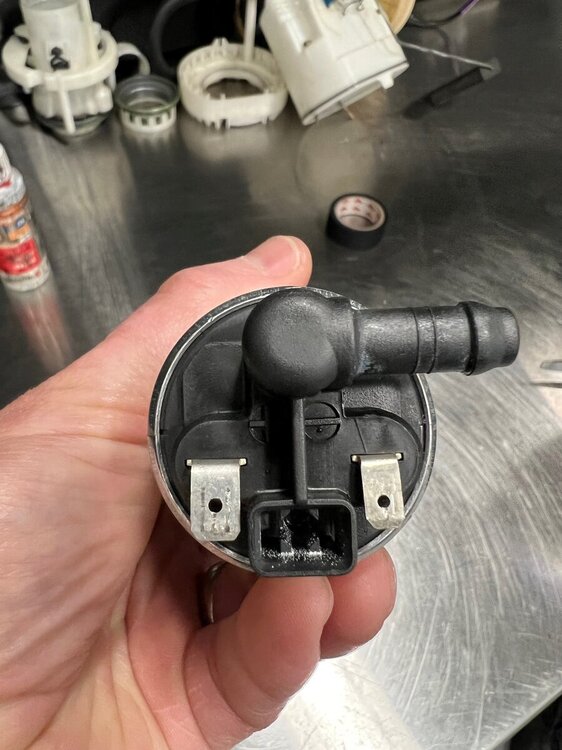

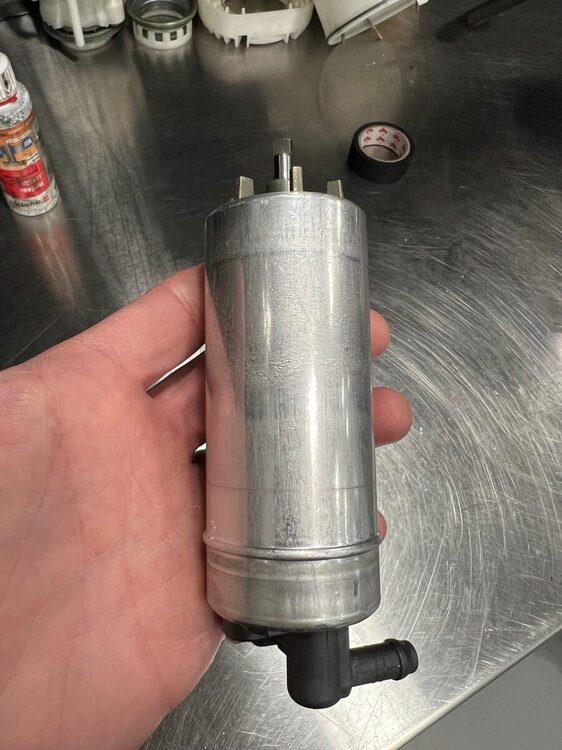

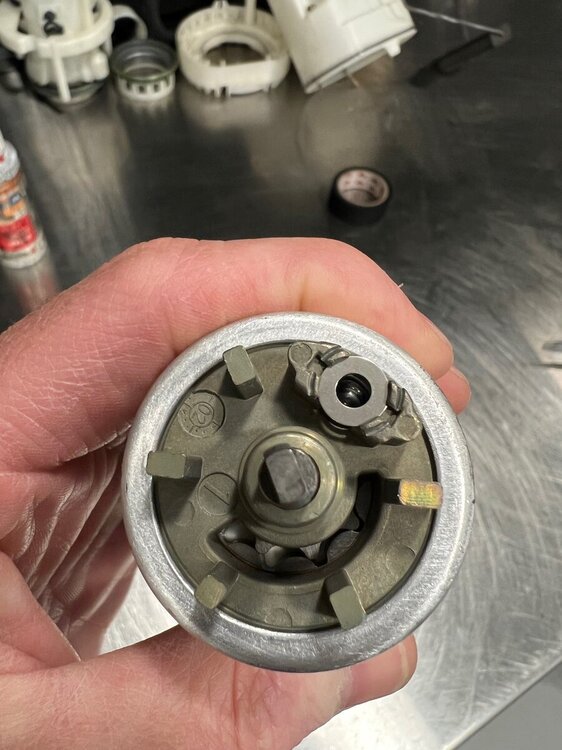

On Image "pump" it shows what I keep getting sent, the other images are the original pump.

Thanks



[fendervg 33]

Is your old pump a Pierburg? These are no longer available, asn the standard route is to fit the VDO 4-bar unit and you will also need to order a fuel gauge sender to go along with it as these are a different fit to the swirl pot. It will be pretty hard to match the pump body only as you are trying to do - is there a part number on it?

My car is 1993 VR with dizzy (same as yours I think) and originally had a Pierburg pump, then replaced with a VDO unit like the later cars - the metal pump motor insert is hard to come by on its own and probably involves a bit of trial and error - but a 4-5 bar unit of the correct size and fittings should work no problem, the fuel pressure regulator will drop the pressure a bit. Bosch do a whole range of these pumps, like the 040/044 and Walbro as well. Usually it's just eaier to buy the whole assembly including swirl pot and sender float if you need it.

If you do a search here, there are already a number of good threads discussing the options.

e.g.



Edited March 30, 2022 by fendervg

[Skag 0]

Appreciate your response, thank you.

Car as 93 with coil pack.

[Skag 0]

3 hours ago, fendervg said:

Is your old pump a Pierburg? These are no longer available, asn the standard route is to fit the VDO 4-bar unit and you will also need to order a fuel gauge sender to go along with it as these are a different fit to the swirl pot. It will be pretty hard to match the pump body only as you are trying to do - is there a part number on it?

My car is 1993 VR with dizzy (same as yours I think) and originally had a Pierburg pump, then replaced with a VDO unit like the later cars - the metal pump motor insert is hard to come by on its own and probably involves a bit of trial and error - but a 4-5 bar unit of the correct size and fittings should work no problem, the fuel pressure regulator will drop the pressure a bit. Bosch do a whole range of these pumps, like the 040/044 and Walbro as well. Usually it's just eaier to buy the whole assembly including swirl pot and sender float if you need it.

If you do a search here, there are already a number of good threads discussing the options.

e.g.



No part number on pump 😞

[fendervg 33]

There seem to be PIERBURG 7.02550.58.0 and VAG1H0906091 part numbers for the pump body only, but don't quote me on it or the bar being 3 or 4.

I'd say your best bet is to source a complete VDO swirl pot assembly and pump and the correct VDO fuel gauge sender and float, and be done with it. The Pierburg was only ever fitted to very early VR6s, and the discontinued.

Even online part databases only list VDO, but I know I used to have an older copy of ETKA that died with my Windows XP system, that also listed the Pierburg.

[Keyo 47]

Im not sure but I think the vdo pump has gone obsolete  now unless they have just done a re run ,  but there is a JP one knocking about - not great but better then a lick in the teeth- it comes with the swirl pot.

So buy this if the vdo is unobtainable

https://www.heritagepartscentre.com/uk/1h0919651q-fuel-pump-with-housing-for-g60-and-vr6.html?gclid=Cj0KCQjw_4-SBhCgARIsAAlegrX6C-xUPXiMNcrfM44l2efF06KLTuOT1zpqW4iaDqrYF7onMXmL16caAn4MEALw_wcB

also buy this

https://www.ebay.co.uk/itm/165288791077?epid=249158734&hash=item267bfacc25:g:dmAAAOSwNSxVW4D6

You will have a compatible set up.





Edited March 30, 2022 by Keyo

[Crasher 3]

You can still buy the complete unit, part of or just pump alone from various companies, the Bosch 0 986 580 823 is still available



Edited April 1, 2022 by Crasher

[Keyo 47]

3 hours ago, Crasher said:

You can still buy the complete unit, part of or just pump alone from various companies, the Bosch 0 986 580 823 is still available



This will work - but its actually advertised as 4 bar at euro but i did some research and saw it was 3 bar on other adverts- spoke to Bosch and confirmed yes is 3 bar.

[Skag 0]

Does the 3 / 4 Bar cause a big problem?

[fendervg 33]

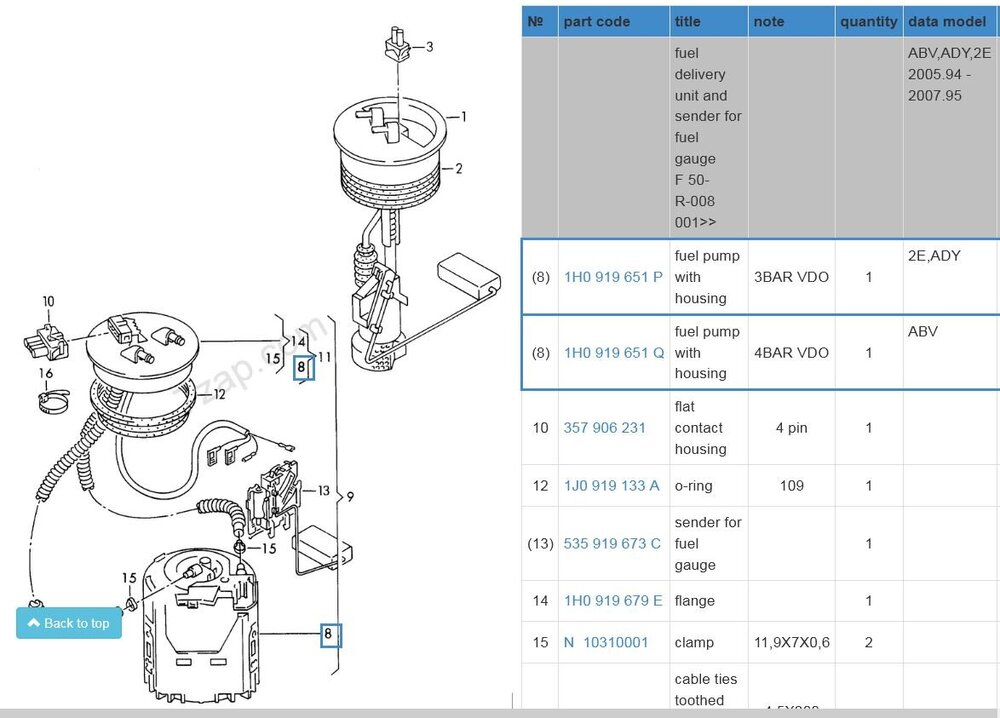

The 2.9 ABV engine was always specced at 4 bar - the 3 bar pumps were fitted to the 2.8 AAA etc. VR engines in the Golf/Passat and US SLC Corrado. You could probably get away with it if you match it to the correct fuel pressure regulator, but would be the wrong one for the car - I guess higher pressure means more fuel delivered by the injectors for the same pulse timing, so you might see a small performance drop - the higher pressure pump might be to allow for the extra displacement.

Would be interesting to see if anyone has done it on here and what their experiences were....

[Keyo 47]

I believe the JP one is 4 bar but not a great brand - again worth contacting there HQ to confirm it is indeed a 4 bar.  Hopefully the vdo will make another batch - might be due to covid last couple of years .

[Skag 0]

Okay, gents appreciate your help but can you tell me what I need to order for example:

1. Fuel Sender

2. VDO (guessing this is the housing that screws in to the bottom of the tank)

3. Fuel Pump

Guessing I just bin the original or add to the pile spare or broken bits!

Thank you



[fendervg 33]

The VDO pump will come with the swirl pot - just the sender required. Don't think a VDO pump body will fit into the Pierburg swirl pot.

I'll see if I can dig out the part numbers of both for you to stick into Google.

[fendervg 33]

Fuel Pump VDO E22-041-060Z

Fuel level sender VDO 221-833-002-011Z

Pump I got from Mr Auto, and the sender off fleabay. Hope this helps.

Both are currently listed on autodoc.de, although the fuel pump is not cheap  - usually about €200



Unit price GBP 61.89

https://www.autodoc.de/search?keyword=+E22-041-060Z&supplier[1]=83

https://www.autodoc.de/vdo/1736285?search=VDO Sensor, Kraftstoffvorrat (221-833-002-011Z)#

According to vwvortex posts, the Quinton Hazell is a direct rebrand of the VDO item and equivalent quality, and looks to be cheaper, but not sure if that unit is 4 bar.



Edited April 8, 2022 by fendervg

[Skag 0]

Really appreciate your help!

I'm guessing the top part I re use?  (the part that seals to the top of the tank with both pipes on and electrical connector)

[fendervg 33]

Yep, keep that (tank pump cover lid)  and the hoses, and these connect to the new swirl pot,  The wires should have spade connectors on them that will clip on to the pump terminals - I think when I did my swap I extended the wires for the fuel level sender slightly and crimped on some new spader connectors.

Some trivia: there is actually a special VW tool for loosening and tightening the pump lid lockring

[Skag 0]

On 4/8/2022 at 12:51 PM, fendervg said:

Bloody fuel pump not in stock 😞















Fuel Pump VDO E22-041-060Z

Fuel level sender VDO 221-833-002-011Z

Pump I got from Mr Auto, and the sender off fleabay. Hope this helps.

Both are currently listed on autodoc.de, although the fuel pump is not cheap  - usually about €200



Unit price GBP 61.89

https://www.autodoc.de/search?keyword=+E22-041-060Z&supplier[1]=83

https://www.autodoc.de/vdo/1736285?search=VDO Sensor, Kraftstoffvorrat (221-833-002-011Z)#

According to vwvortex posts, the Quinton Hazell is a direct rebrand of the VDO item and equivalent quality, and looks to be cheaper, but not sure if that unit is 4 bar.





[fendervg 33]

Did you try putting the part number and “VDO” into Google? Might get some hits to follow up on.

[Keyo 47]

Quinton Hazell lol no chance will that be the same quality as a VDO unit.

Edited April 26, 2022 by Keyo

[fendervg 33]

Quinton Hazell lol no chance will that be the same quality as a VDO unit.

I would have thought the same thing, but funnily enough there is a thread on the vortex discussing them and the guys reckoned they were rebadged VDO and same quality. I haven’t tried one to find out though, but that’s why I mentioned it.

[Skag 0]

On 4/8/2022 at 12:51 PM, fendervg said:

Both ordered from Ebay, thank you very much for your help. Strangely it says the level sender isn't compatible for the VR6 but I'm guessing you know best 🙂



On 4/8/2022 at 12:51 PM, fendervg said:























Fuel Pump VDO E22-041-060Z

Fuel level sender VDO 221-833-002-011Z

Pump I got from Mr Auto, and the sender off fleabay. Hope this helps.

Both are currently listed on autodoc.de, although the fuel pump is not cheap  - usually about €200



Unit price GBP 61.89

https://www.autodoc.de/search?keyword=+E22-041-060Z&supplier[1]=83

https://www.autodoc.de/vdo/1736285?search=VDO Sensor, Kraftstoffvorrat (221-833-002-011Z)#

According to vwvortex posts, the Quinton Hazell is a direct rebrand of the VDO item and equivalent quality, and looks to be cheaper, but not sure if that unit is 4 bar.





[fendervg 33]

Hopefully they are ok - the sender part# is definitely correct for the VDO pump as that is what I have on my car, Keyo as well as far as I know.

Lets us know how you get on when they arrive. It's a real pain that the search for nearly every part for a Corrado has turned into a lengthy and often disapointing magical mystery tour and treasure hunt!

There used to be a thread on here for listing OEM equivalent part numbers for commonly sought parts - might be worth resurecting

[Keyo 47]

I concur it is compatible and yes it says it does not fit but it does. Its a lot cheaper then the same vdo sender vw sell form germany with the vag stamp which is over £100.00 for the exact same part and manufacturer.

Edited April 27, 2022 by Keyo

[VR6 South 0]

Three years ago or maybe longer I fitted a Johns fuel pump, swapping the VDO fuel sender and fuel tank lid. It is a perfect fit and works exactly how it should. Sorry I no longer have the details of where it was purchased or the part number.

For £40 delivered at the time I would highly recommend the Johns pump which comes with a 2 year warranty.

[Keyo 47]

Ouch !

https://www.volkswagen-classic-parts.com/catalog/en_uk/part/1H0919651Q?ct=3&q=fuel hose 3.5 mm
